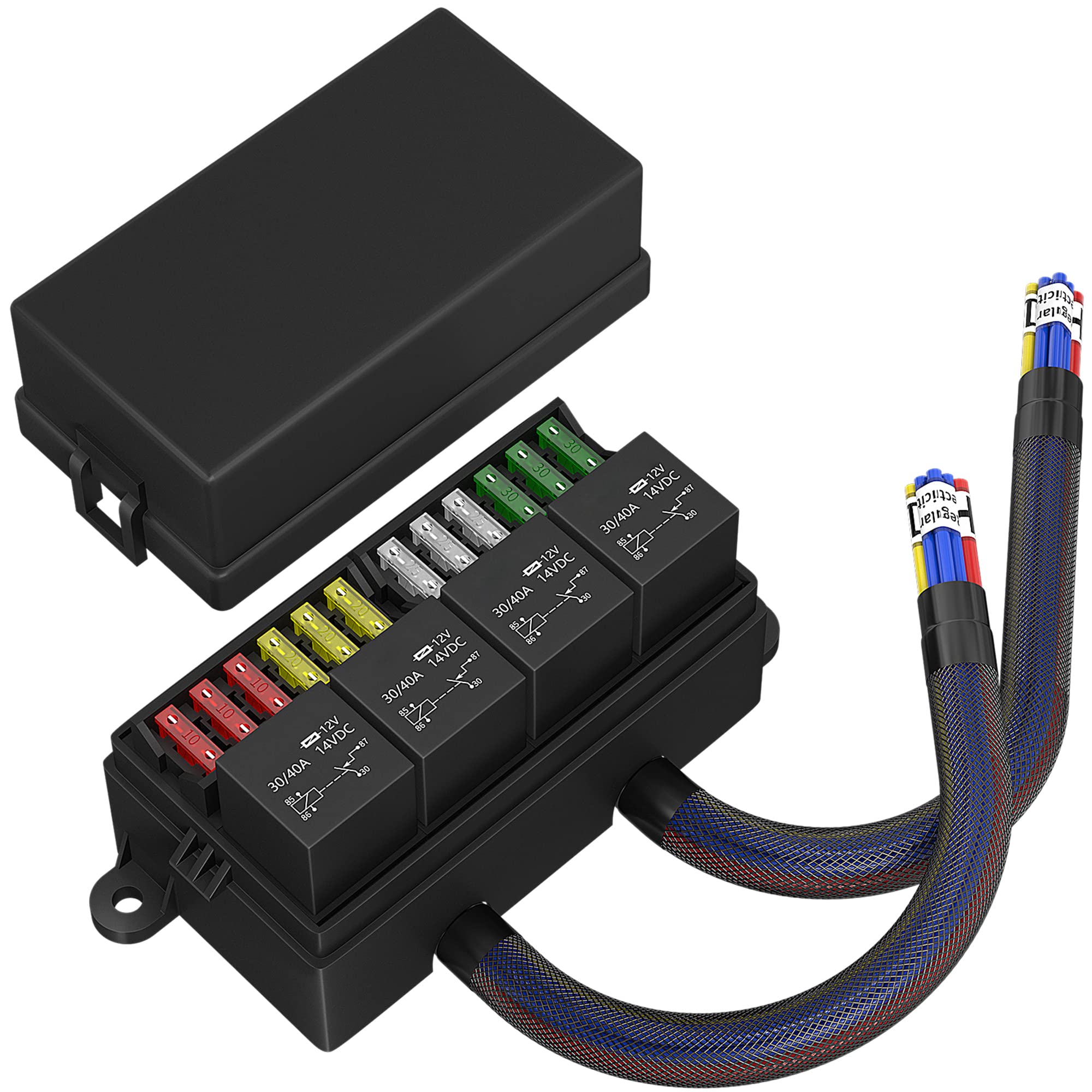

12V Pre-Wired Fuse Relay Box with 4 Relays & 12 ATC/ATO Fuses - Waterproof Automotive Fuse Block for Cars, Trucks, Boats, Marine & RV Electrical Systems - Perfect for Vehicle Wiring, Audio Installations & Accessory Power Distribution
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:44373607
Product Description

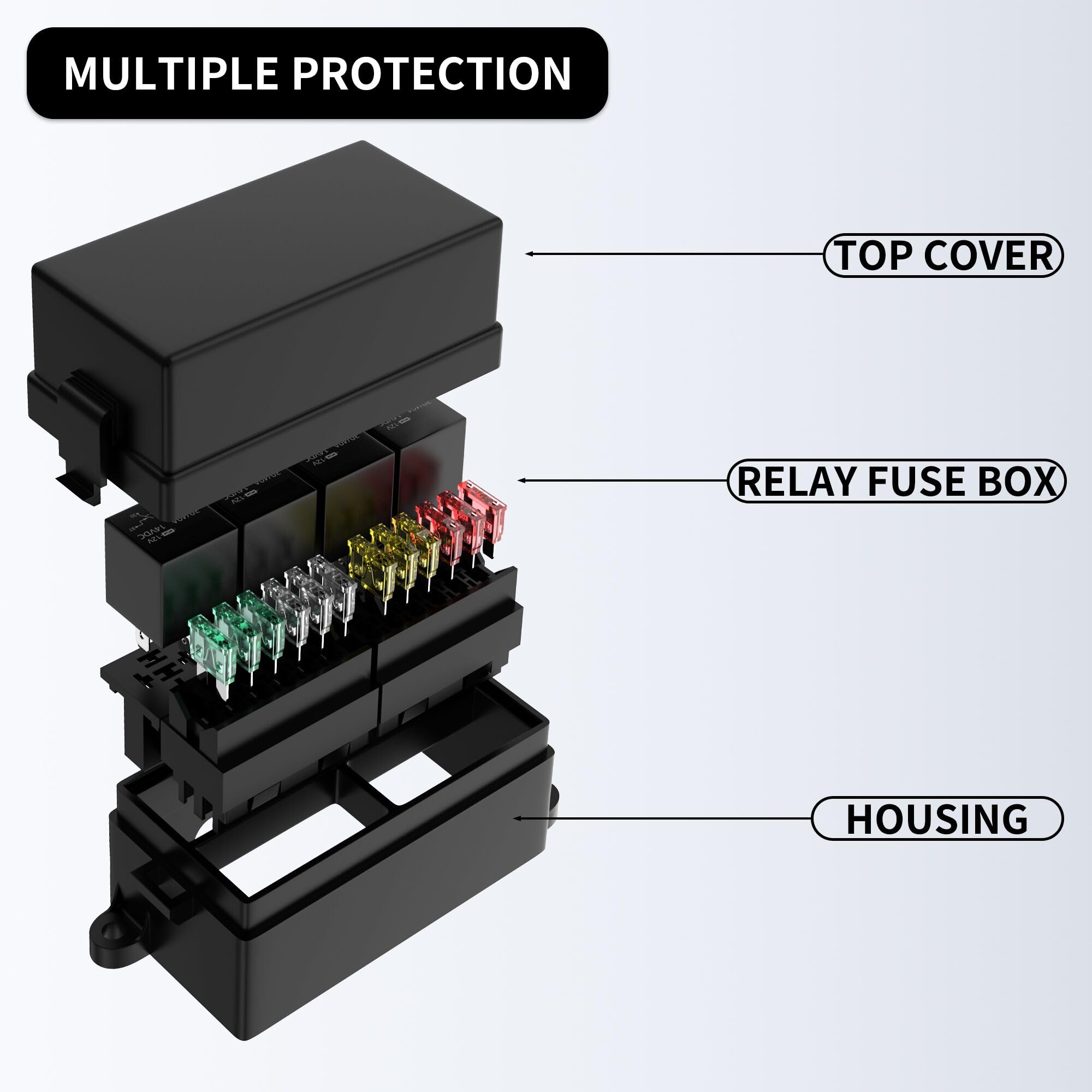

Fuse Relay Box Kit Specification: Relay Type: 40A Bosch Relay Fuse Type: ATC & ATO Fuse Way: 4 Way Voltage: 12V/24V Cover Material：Plastic Base Material: Flame Retardant Nylon Material Product Shape: Insert Type Package Includes: 1 x Pre-wiring Relay Holder Box 4 x 4Pin 40A Bosch Relay 3 x 10A Blade Fuse 3 x 20A Blade Fuse 3 x 25A Blade Fuse 3 x 30A Blade Fuse Fuse Relay Block The box is 4 relay slots and 12 fuse slots design, max hold 4 bosch style relays and 12 balde fuses, will provide more protection for your circuit. 4 Pin Relay The relay fuse box will come with 6 pieces of relays for use, which is 4 pin design, makes the wiring and installation much easier and more convenient. ATC/ATO Blade Fuse The fuse relay box will also come with 11 pieces of fuses, which includes 2 x 5A, 2 x 10A, 2 x 15A, 2 x 20A, 2 x 25A and 1 x 30A, convenient for you to use immediately. Top Cover The top cover will helps to make the 12v relay box waterproof and dustproof, prevent dust and water from entering, which effectively enhances the security and life cycle of use. Pre-wired This fuse box with a relay adopts a pre- wired design, completing half of the connection work and installing it clean and tidy, making your connection easier. Label Colored label wires provide instructions for other wires for easy load/accessory wiring.
Product Features
Pre-wired This fuse relay box is pre-wired design, completing half of the connection work, makes the entire connection process faster and time-saving

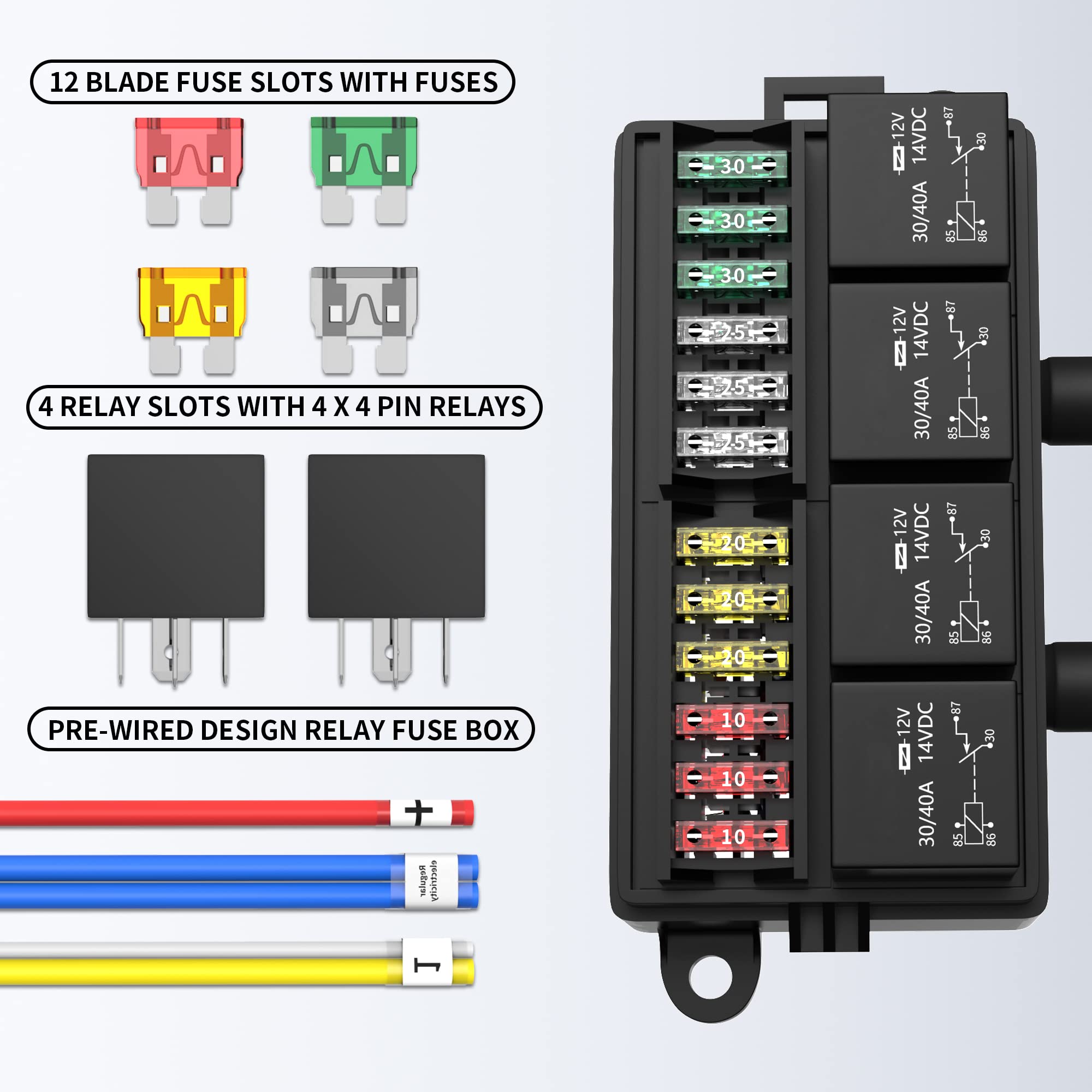

Capacity This fuse and relay box can max hold 4 relays and 12 fuses at the same time, making multiple relays in one box, keeps your circuit neat and tidy

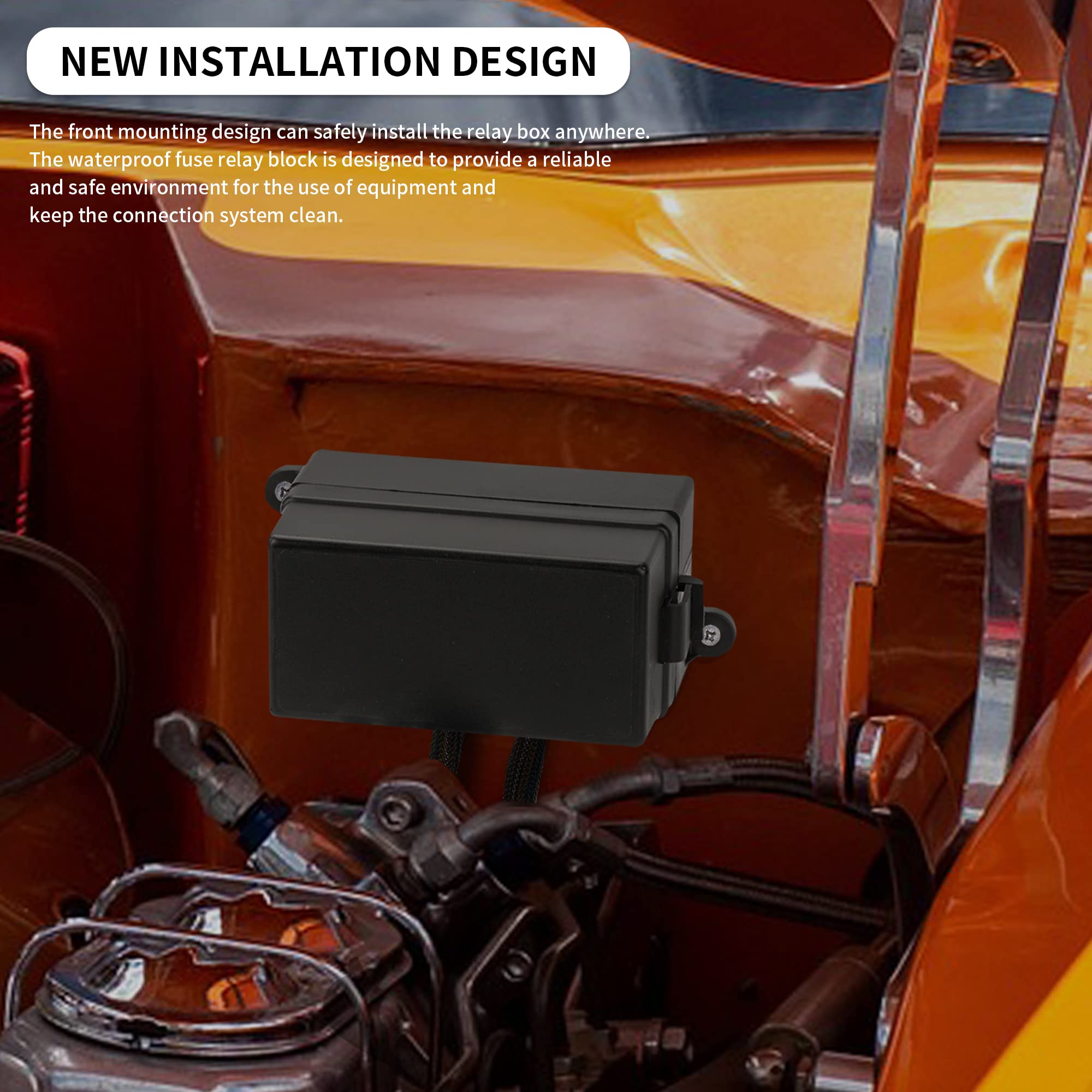

New Installation Design The front mounting design can safely install the relay fuse box anywhere. The waterproof fuse relay block is designed to provide a reliable and safe environment for the use of equipment and keep the connection system clean. It is applicable to cars, trucks, ships, etc
40A Relay This relay box 12v automotive will be equipped with 4 pieces of 4 pin 40A relays, provide the highest rating to make its application wider and safer
Various Size Fuses This auto fuse block will also come with 12 pieces of ATC/ATO fuses, which includes 3 x 10A, 3 x 20A, 3 x 25A, and 3 x 30A blade fuses, can meet a wide range of using requirements
Customer Reviews

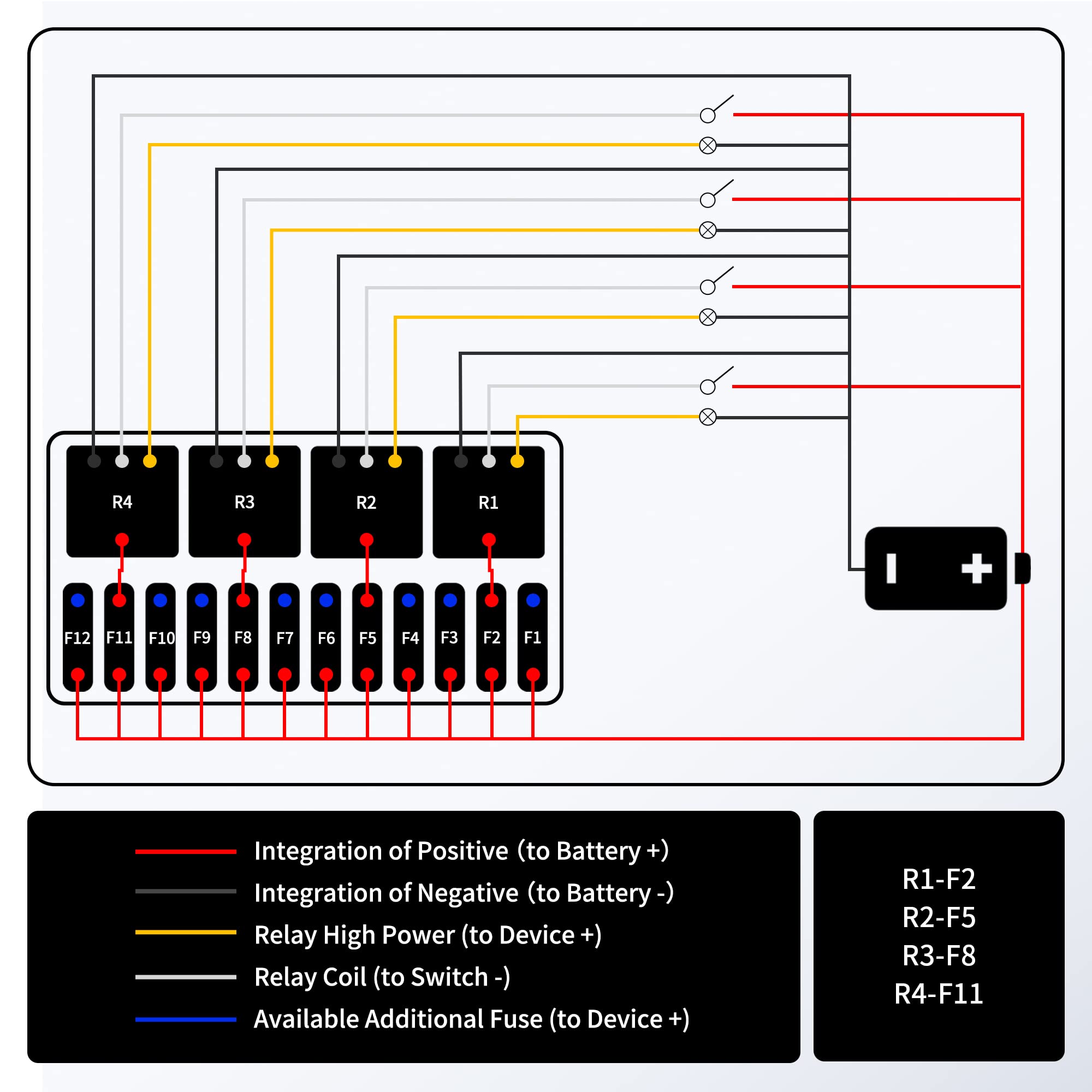

For the price, this is a solid box!Having the 4 relays and extra fused power slots is a bonus.Another reviewer already mentioned how it's wired so I won't go into that part, but 2x red wires are main power, black is the daisy-chained ground, white is your trigger wires, yellow goes to your relayed devices, and the blues are just regular fused power.I used this in my 2002 VW Golf for a couple sets of fog lights, underhood lighting, and a lift pump. I wanted to clean up the battery terminals.As you can see in my images, I basically connected the 14 AWG power wires together, which gives this entire box around 40-50A rating. I'm protecting the entire box with a resettable, 40A breaker as a "just in case". From the breaker to the battery I just made an 8AWG jumper which can also handle 40A.The box mounts up nicely with some M6 screws.Couple things to note:Box is NOT waterproof. So place accordingly.As well, the included fuses are cheap. Probably won't last long but I'll run them until they go.
